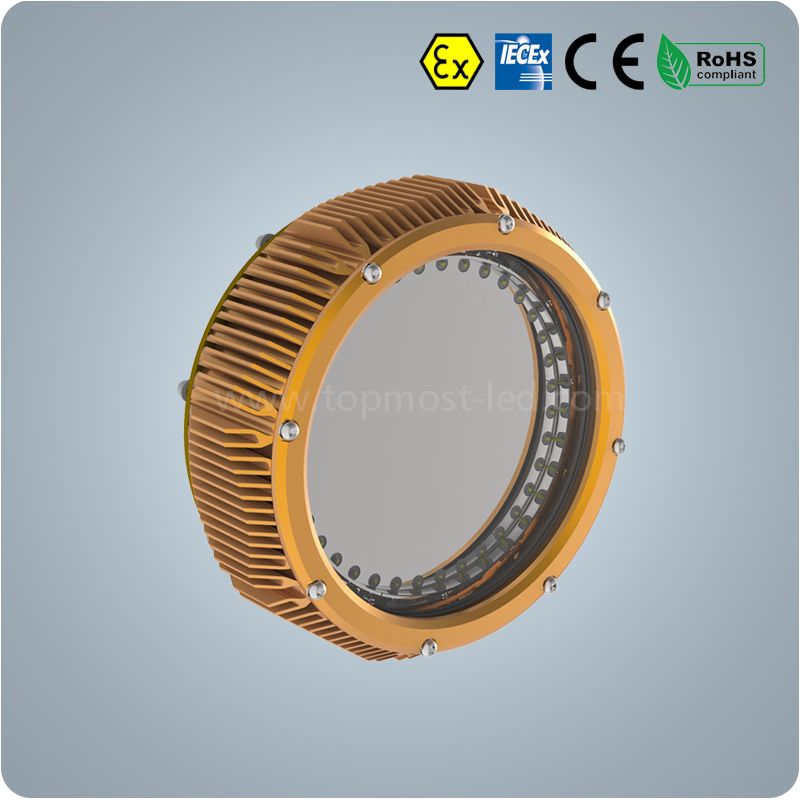

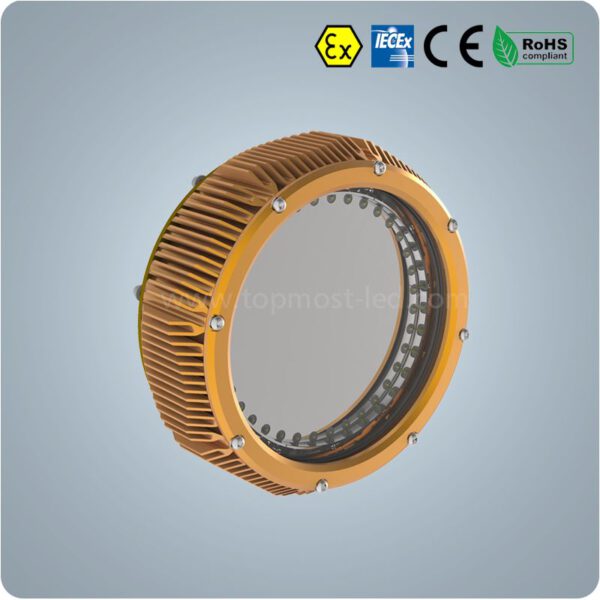

Ex-BLP Series LED Explosion-proof Floodlight |
||||
| Features | ||||
| ● Osram LEDs, high lumen output over 140lm/W. ● 360° annular LED light source distribution, anti-glare. ● Extruded copper-free aluminum, high intensity, can endure 20J impact. ● Capable to work at extreme high and low temperature -45℃～+60℃, keep good performance. ● IP66 and high corrosion resistance, can be used in ocean environment. ● Lightning protection 6KV, THD≤ 5%. ● Various installation methods. |
||||
| Applications | ||||
| ● Ex d IIC 101℃(T4) Gb. For Zone 1 & Zone 2, Class l Division 1 & Class l Division 2. Ex tb IIIC T96℃ Db IP66. For Zone 21 & Zone 22, CIass II Division 1 & Class II Division 2. Especially can be used in hydrogen exsiting enviorment. ● Ideal for oil and gas industry, refineries, onshore and offshore rigs, pumping station, oil tank, petrochemical plants, mining, power generation, wharf and loading docks, etc. |
||||
| Technical Parameters | ||||
| Model No. | Ex-BLP30 | Ex-BLP45 | Ex-BLP60 | Ex-BLP80 |
| Power Consumption | 30W | 45W | 60W | 80W |
| Input Voltage & Frequency | AC 100-277V 47-62Hz |
|||
| Input Current | 100～330mA | 150～500mA | 200～660mA | 260～880mA |
| Power Factor (PF) | ≥0.98 | |||
| LED Chips Brand | OSRAM or other efficient | |||
| Luminous Flux | 3600lm | 4800lm | 6000lm | 8000lm |
| Dimensions | φ258*80mm | |||
| Weight | 3.5kg | |||
| Color Rendering Index (CRI) | Ra > 70 | |||
| Color Temperature | WW: 2800～3300K PW: 4700～5400K CW:5700～7100K |
|||
| Beam Angle | 40°/80°/120° | |||
| Working Ambient Temp. | -45℃～+60℃ | |||
| IP Grade | IP66 | |||
| Lifespan | ≥50000hrs | |||
| Housing Material | Copper-free aluminum | |||
| Front Cover Material | Tempered glass | |||
